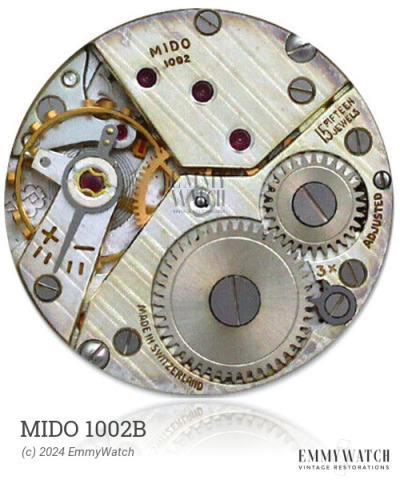

Mido 1002B
Ligne: 10.5'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1936
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.30 x 0.80 / 0.22 mm
The Mido 1002B is a manual wind watch movement that features a sub-second function. It was produced around 1936 and belongs to a series of movements with various bridge layouts, some of which may be labeled as AS 341. Although there are several models listed in old data sheets, the distinctions between them are not currently known.
The Mido 1002B features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.50 x 0.105 x 280 x 9.0 mm | GR41332 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
