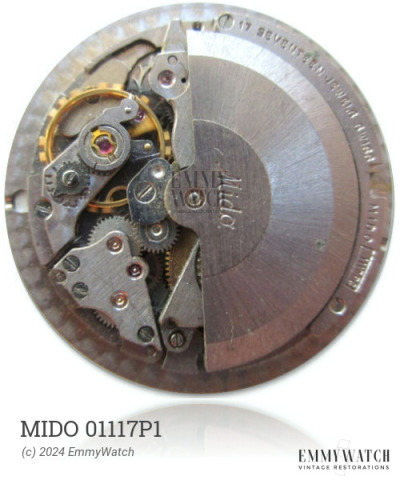

Mido 01117P1
Ligne: 12.5'''
Jewels: 21
Frequency: 18000 vph
Type: Automatic
Period used: 1966-
Diameter: 28.2 mm
The Mido 01117P1 watch movement is an automatic movement with a sweep second and date function. Its period of use is from 1966 onwards. The differences between the 5400, 5410, 5420, 5430, and 5470 variations are not known.
The Mido 01117P1 features the following functions:
- Automatic Winding
- Date
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| ROLLER 180X75X33 | 82S/193R | Buy part | |
| STAFF | 043-19 | 723/1248 | Buy part |
| SWEEP SECOND PINION, HT 5.05 | 025-23 | 275/528 | Buy part |
