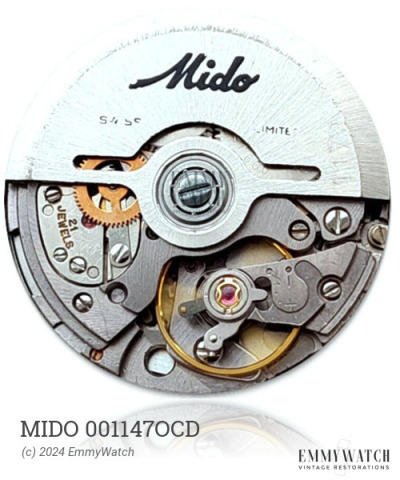

Mido 001147OCD
Ligne: 7.25'''
Jewels: 17/21
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1952-
Diameter: 16.2 mm
Height: 5.25 mm
Hands: 1.20 x 0.70 x 0.18 mm
The Mido 001147OCD watch movement is an automatic calibre with a sweep second function. The movement features a fixed stud carrier in its early production period, which was later replaced with a mobile stud carrier design. Different rotor shapes were used during the production period, similar to other calibres in the same family. The Mido 001147OCD watch movement was in use from 1952 onwards.
The Mido 001147OCD features the following functions:
- Automatic Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.070 x 210 x 6.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
