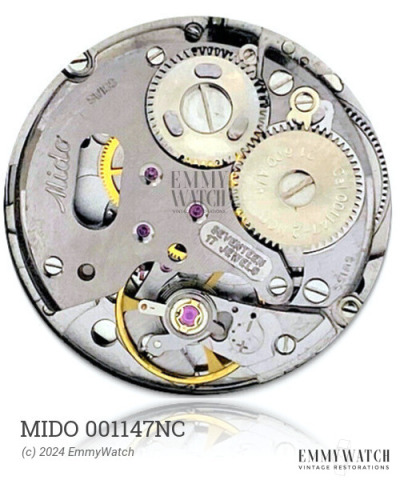

Mido 001147NC
Ligne: 5.75 x 8.5'''
Jewels: 15/17
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 12.85 x 19.55 mm
Height: 3.7 mm
Hands: 1.00 x 0.55 mm
Base: A. Schild 1051
The Mido 001147NC watch movement, popularly used by brands such as Novice and Terval, features a manual wind mechanism. Its period of use dates back to approximately 1945.
The Mido 001147NC features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.075 x 280 x 7.5 mm | GR4069 | Manual | Buy mainspring |
| 1.50 x 0.075 x 260 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
