Mido 001147-2NCD
Ligne: 11.5'''
Jewels: 17
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26 mm
Height: 3.6 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: A. Schild 1704

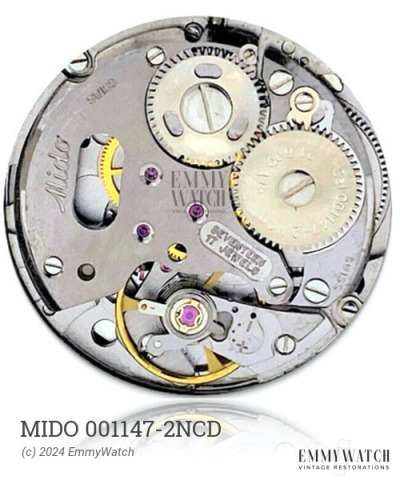

The Mido 001147-2NCD watch movement is a manual wind movement with sweep seconds. It has similar characteristics to the A. Schild 1704 movement, although the specific differences between the two are not known. The Mido 001147-2NCD movement was commonly used around the 1960s.
The Mido 001147-2NCD features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.105 x 340 x 9.5 mm | GR2451 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BALANCE COMPLETE, INCABLOC | 721/1380 | 722/AS 1705 | Buy part |
| MAINSPRING 1.00-.105-340 9,5 | MS-15105P | GR 2451 | Buy part |
| PALLET ARBOR, S/S 40-100-10 | 72S/87P | 714/AS 1007 | Buy part |
| ROLLER, INCABLOC 180X75X36 | 82S/147R | 730/AS 1649 | Buy part |
| STAFF, INCA | 100/2286 | Buy part | |
| STEM | 200/1494F | Buy part | |
| STEM, FEMALE OA 9.40 | 360/321 | 404/AS 1704 | Buy part |
