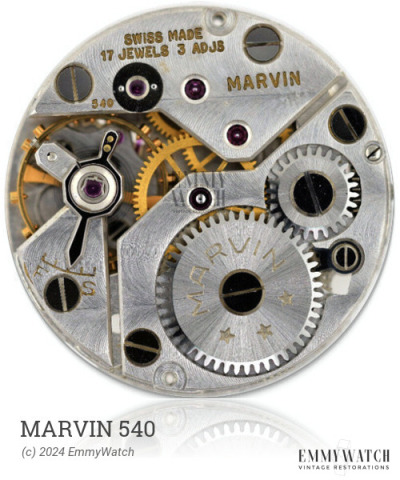

Marvin 540
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 23.7 mm
Height: 4.05 mm
Hands: 1.35 x 0.80 / 0.22 mm
Base: General 800
The Marvin 540 watch movement, introduced around 1955, features various bridge shapes and late samples may be equipped with Kif-Duofix combined settings for the escapement wheel. It is characterized by its manual winding functionality and sub-second function.
The Marvin 540 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 300 x 9.0 mm | GR4486 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
