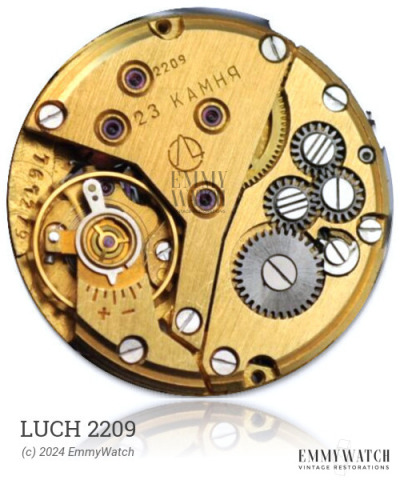

Luch 2209
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26.3 mm
Height: 4.3 mm
Hands: 1.50 x 0.90 x 0.20 mm
The Luch 2209 is a manual wind watch movement that features a sweep second hand. It has a day function which can be set by a +/-24h adjustment, and a date function which can be set by changing the 21-24h. This movement was primarily used around the 1960s.
The Luch 2209 features the following functions:
- Date: set by changing 21-24h
- Day: set by +/-24h
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 350 x 10.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.110 x 340 x 10.0 mm | GR3700 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| STEM, MALE OA 10.90 | 360/329 | 360/FEL 4000 | Buy part |
