Longines 302
Ligne: 19.5'''
Jewels: 7
Power Reserve: 18 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 44 mm
Height: 8.1 mm
Hands: 1.35 / 1.35 mm

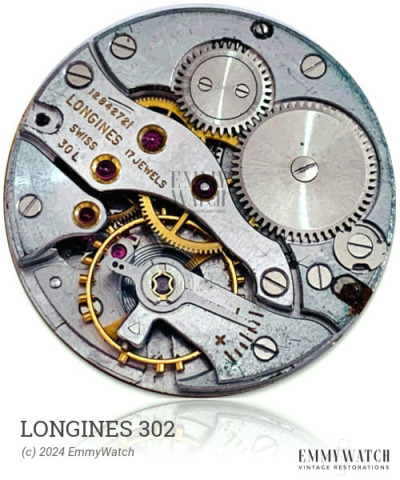

The Longines 302 watch movement is an open face calibre with a stop function controlled by a pillar wheel. The movement features a pendant mounted on the movement, allowing for convenient time-setting. The calibre is reasonably known, as early calibres lack sufficient records and clarity. The Longines 302 movement includes a timer function with 60-second increments and a precision of 0.2 seconds, along with a 60-minute timer function activated by a pillar wheel. Additionally, the movement offers an addition timer, stem winding capability, and a sweep second hand function.
The Longines 302 features the following functions:
- Addition timer
- Stem wind
- Sweep second
- Timer, 60s (0.2s), 60min, pillar wheel
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3096 | Ordinary/None | Buy staff |
| 4143 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.150 x 480 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
