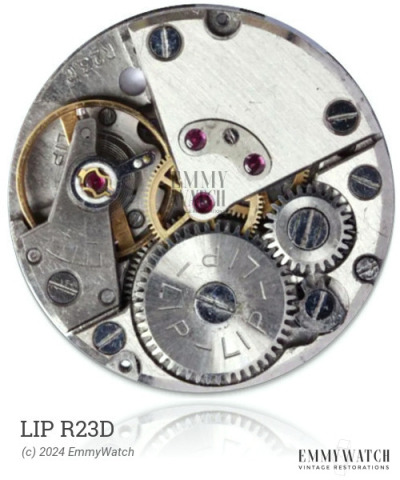

Lip R23D
Ligne: 10.5'''
Jewels: 17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1974
Diameter: 23.6 mm
Height: 3.85 mm
Hands: 1.50 x 0.90 x 0.20 mm
Base: Seiko SPORTSMAN
The Lip R23D is a manual-wind mechanical watch movement with sweep seconds functionality. It incorporates a stem mechanism without a setting-lever spring and features Diafix combined settings for the escapement wheel. Not much is known about the specific differences between the 66B, 436, and 4361 variants of this movement. The Lip R23D also includes an Adjustable Stud Holder and was used during the approximate period of 1974.
The Lip R23D features the following functions:
- Adjustable Stud Holder
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.110 x 380 x 9.0 mm | GR3510 | Manual | Buy mainspring |
| 1.30 x 0.115 x 340 x 10.0 mm | GR3296 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
