Lip R100
Ligne: 18'''
Jewels: 15
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1909
Diameter: 40.7 mm
Height: 6.8 mm
Hands: 1.75 x 0.60 / 0.26 mm

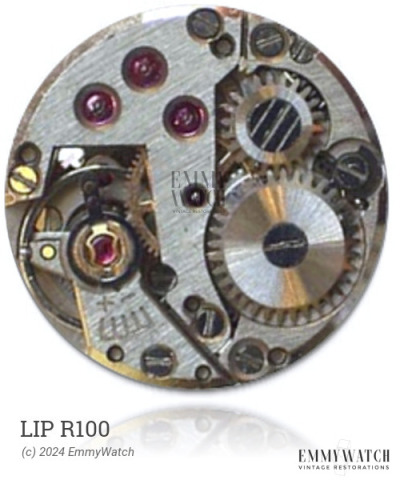

The Lip R100 movement is a hunter calibre with a bimetallic screw balance. It features a very early two-section regulator for coarse and fine adjustment. The ratchet is located on the dial side, with the click unlocking from the rear side via a marked screw head. The crown mechanism includes a rocker bar, and the setting pin is fixed in the movement by a screw. The movement offers a stem wind and pin set function, along with a sub second display. It was commonly used in watches around 1909.
The Lip R100 features the following functions:
- Stem wind and pin set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
