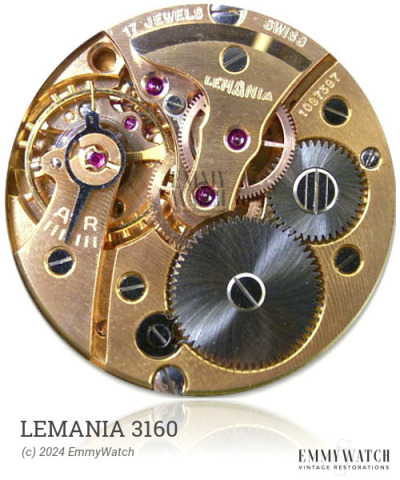

Lemania 3160
Ligne: 10.5'''
Jewels: 17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1974
Diameter: 23.6 mm
Height: 3.85 mm
Hands: 1.50 x 0.90 x 0.20 mm
Base: Seiko SPORTSMAN
The Lemania 3160 is a manual-wind mechanical watch movement with sweep seconds functionality. It incorporates a stem mechanism without a setting-lever spring and features Diafix combined settings for the escapement wheel. Not much is known about the specific differences between the 66B, 436, and 4361 variants of this movement. The Lemania 3160 also includes an Adjustable Stud Holder and was used during the approximate period of 1974.
The Lemania 3160 features the following functions:
- Adjustable Stud Holder
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.110 x 380 x 9.0 mm | GR3510 | Manual | Buy mainspring |
| 1.30 x 0.115 x 340 x 10.0 mm | GR3296 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
