Lemania 3150
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26 mm
Height: 3.6 mm
Hands: 1.50 x 0.90 x 0.21 mm

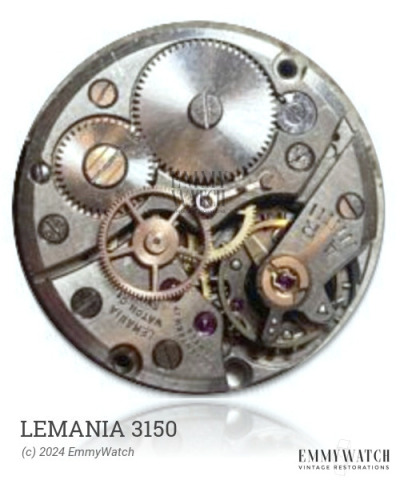

The Lemania 3150 watch movement is a manually wound mechanical movement with a sweep second hand function. It was used in watches around the 1960s. The movement's early versions had a fixed stud carrier, which later became mobile. The differences between the 2391, 2393, 2395, 2397, 2399, 2401, 2403, and 2405 are not known.
The Lemania 3150 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.110 x 340 x 10.0 mm | GR3285 | Manual | Buy mainspring |
| 1.30 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
