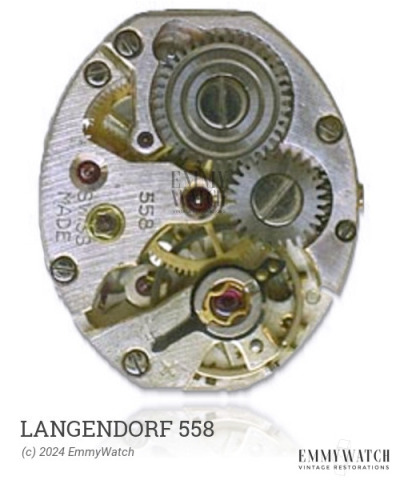

Langendorf 558
(Lanco, Lang)
Ligne: 8.75'''
Jewels: 17
Lift Angle: 50°
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1941
Diameter: 19.6 mm
Height: 3.25 mm
Hands: 1.04 x 0.56 / 0.16 mm
The Langendorf 558 watch movement is a mechanical movement that was used in watches produced around 1941. It features a manual wind function and includes a sub second display.
The Langendorf 558 features the following functions:
- Manual Winding
- Mechanical Movement
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1591 | Ordinary/None | Buy staff |
| 1654 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 260 x 7.5 mm | GR3203T | T | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
