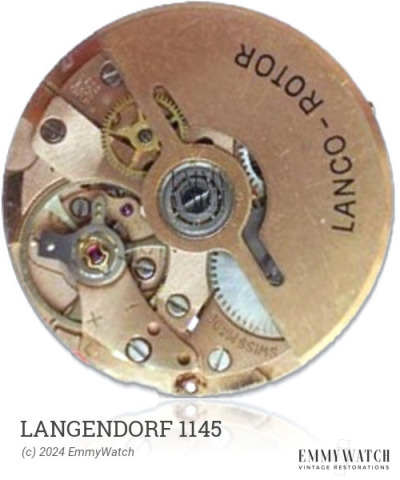

Langendorf 1145
(Lanco, Lang)
Ligne: 11.5'''
Jewels: 17
Frequency: 21600 vph
Type: Automatic
Period used: ~1975
Diameter: 26 mm
Height: 5.21 mm
Hands: 1.40 x 0.90 x 0.21 mm
The Langendorf 1145 watch movement features a design wherein the train and hand gear are separately driven by the barrel. This design allows for a low profile and creates ample space for a large balance. However, it necessitates high precision and shake-free gears due to the involvement of multiple wheels in coupling the second- and minute hand. Additionally, the movement is automatic, has a sweep second function, and was used primarily during the period around 1975.
The Langendorf 1145 features the following functions:
- Automatic Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.120 x 325 x 10.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
