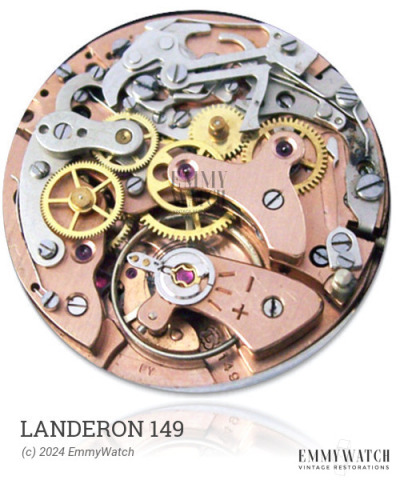

Landeron 149
Ligne: 11.5'''
Jewels: 1/17
Power Reserve: 38 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1970
Diameter: 26 mm
Height: 4.5 mm
Hands: 1.80 x 1.30 x 0.20 mm
Base: Ronda 1115
The Landeron 149 watch movement features a pin-lever escapement, and in late samples, a glued hairspring terminal. It includes a stem mechanism without a setting-lever spring, and has a strangely driven train and hand gear that are separately driven by the barrel. This movement offers manual winding, sweep seconds, and a quickset date function through reverse setting. It is equipped with a pin lever escapement and a calendar feature. The Landeron 149 movement was commonly used around the 1970s.
The Landeron 149 features the following functions:
- Calendar
- Date: quickset by reverse setting
- Manual Winding
- Pin lever
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 340 x 10.0 mm | GR3700 | Manual | Buy mainspring |
| 1.40 x 0.120 x 320 x 9.5 mm | GR3728 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
