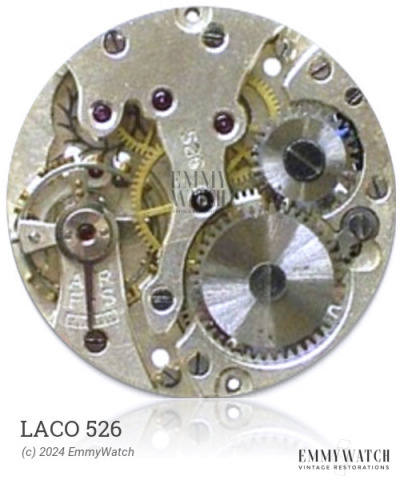

Laco 526
Ligne: 13'''
Jewels: 15
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 29.4 mm
Height: 3.8 mm
Hands: 1.50 x 0.80 / 0.20 mm
The Laco 526 watch movement, along with its variations including the 261, 264, 269, 2610 through 2616, 2618, and 2619, are mechanically manual wind movements with a sub-second function. The 2618 movement, manufactured around 1955, is notable for its similar specifications to the aforementioned variations, with the main difference being the layout of the bridges.
The Laco 526 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.110 x 390 x 11.0 mm | Manual | Buy mainspring | |
| 1.70 x 0.115 x 360 x 10.5 mm | GR4918 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|

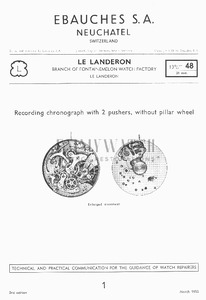

Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
