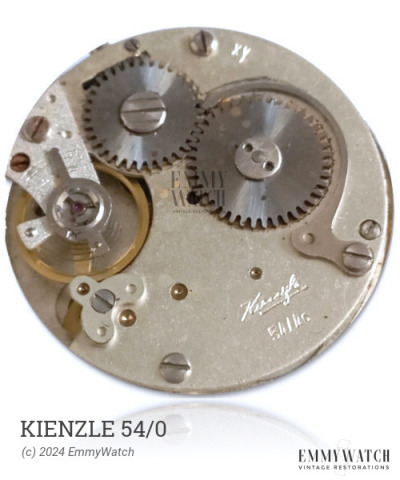

Kienzle 54/0
Ligne: 18'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 40.6 mm
Height: 4.55 mm
Hands: 1.94 x 1.09 / 0.26 mm
The Kienzle 54/0 watch movement is an open face calibre with functions including stem wind and set, sub second, automatic, and sweep seconds. It is part of a series that includes the 785, 900, and 930 movements, but the differences between them are not known. The Kienzle 54/0 movement was used in watches manufactured around the 1930s.
The Kienzle 54/0 features the following functions:
- Automatic Winding
- Stem wind and set
- Sub Second
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4504 | Ordinary/None | Buy staff |
| 1989 | Ordinary/None | Buy staff |
| 4264 | Incabloc | Buy staff |
| 4264 | Shockproof | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.200 x 460 x 16.0 mm | Manual | Buy mainspring | |
| 1.50 x 0.200 x 460 x 15.5 mm | GR4352 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
