Kienzle 147B/72
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26 mm
Height: 3.6 mm
Hands: 1.50 x 0.90 x 0.21 mm

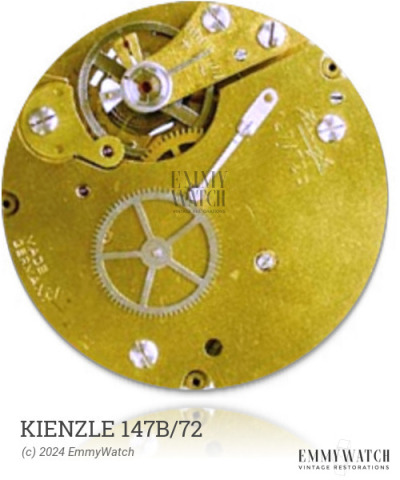

The Kienzle 147B/72 is a mechanical watch movement that was produced around 1960. It features a manual wind function and a sweep second hand. It is part of a group of movements, including the 2391, 2393, 2395, 2397, 2399, 2401, and 2405, with differences between them not being known. Therefore, it is difficult to provide detailed specifications for the Kienzle 147B/72 compared to the other movements in this group.
The Kienzle 147B/72 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.115 x 320 x 9.5 mm | GR3295 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More | |||
| See More |
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
