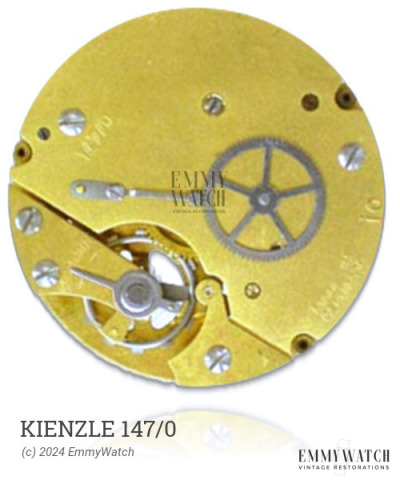

Kienzle 147/0
Ligne: 12.5'''
Jewels: 17
Lift Angle: 49°
Power Reserve: 48 hrs
Frequency: 19800 vph
Type: Manual Wind
Period used: 1967-1973
Diameter: 28.4 mm
Height: 3.9 mm
Hands: 1.50 x 0.80 x 0.18 mm
The Kienzle 147/0 is a manual wind watch movement that was in use from 1967 to 1973. It features a sweep second hand and a calendar function that can be quickset by repeated pulling of the crown. The movement also incorporates Incabloc Shock Protection for enhanced durability.
The Kienzle 147/0 features the following functions:
- Calendar
- Date: quickset by repeated pulling the crown
- Incabloc Shock Protection
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.110 x 360 x 10.0 mm | GR2637 | Manual | Buy mainspring |
| 1.10 x 0.110 x 340 x 10.0 mm | GR2636 | Manual | Buy mainspring |
| 1.05 x 0.120 x 360 x 9.5 mm | GR25351 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
Documents
Parts Listing
