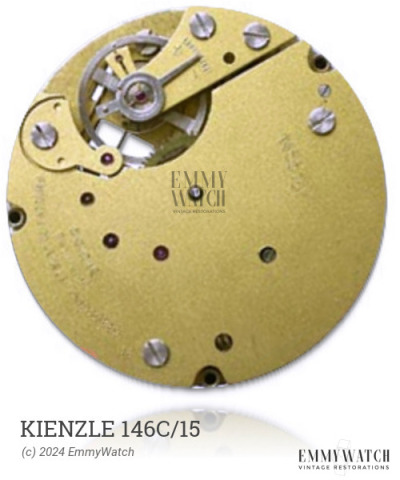

Kienzle 146C/15
Ligne: 16'''
Jewels: 15
Power Reserve: 31 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Diameter: 36 mm
Height: 4.7 mm
Hands: 1.80 x 1.12 / 0.25 mm
The Kienzle 146C/15 is a mechanical watch movement that belongs to the open face calibre family. Not much information is available regarding the differences between the 488, 490, 492, and 514 movements. The Kienzle 146C/15 movement features stem winding and setting, as well as a sub-second function. It was commonly used during the approximate period of 1935.
The Kienzle 146C/15 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3537 | Ordinary/None | Buy staff |
| 589 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.180 x 390 x 14.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
