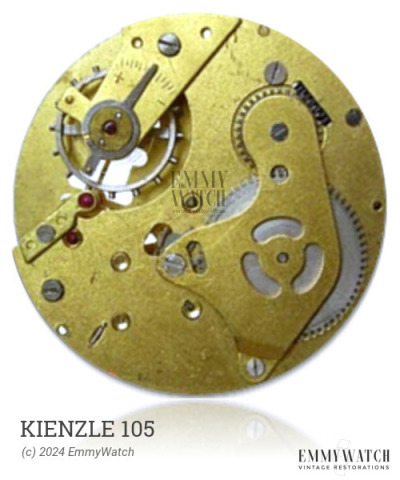

Kienzle 105
Ligne: 16.25'''
Jewels: 15/17
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1936
Diameter: 36.8 mm
Height: 3.95 mm
Hands: 1.90 x 1.00 / 0.28 mm
The Kienzle 105 is an open face calibre mechanical movement with optional bimetallic screw balance. It possesses a stem wind and set function, and features a sub second display. This watch movement was predominantly used around the year 1936.
The Kienzle 105 features the following functions:
- Mechanical Movement
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 60 | Ordinary/None | Buy staff |
| 2715 | Ordinary/None | Buy staff |
| 4464 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.180 x 480 x 15.0 mm | GR3847 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
