Kienzle 051A53
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26 mm
Height: 3.6 mm
Hands: 1.50 x 0.90 x 0.21 mm

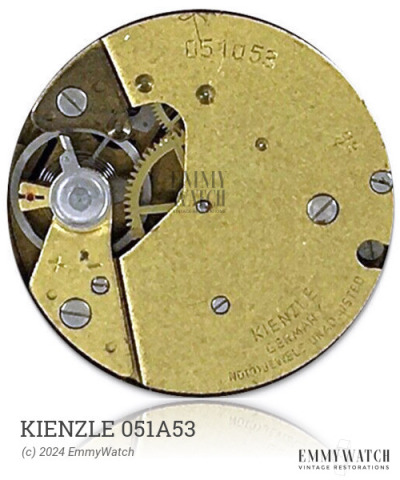

The Kienzle 051A53 watch movement is a manual wind movement that features a sweep second hand. It is similar to the A. Schild 1698 movement although the specific differences between the two are not known. The Kienzle 051A53 movement was commonly used in watches around the 1960s.
The Kienzle 051A53 features the following functions:
- Manual Winding
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5049 | Ordinary/None | Buy staff |
| 5050 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.105 x 340 x 9.5 mm | GR2451 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
