Junghans J69F
Ligne: 8.75'''
Jewels: 15
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 19.75 mm
Height: 3.4 mm
Hands: 1.20 x 0.60 / 0.18 mm

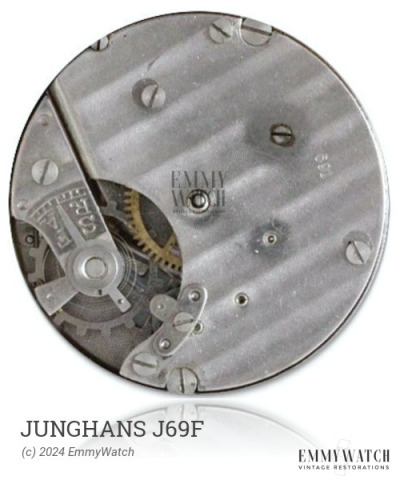

The Junghans J69F watch movement is equipped with a bimetallic screw balance and a Breguet hairspring. It is a manual wind movement with sub seconds function. The movement was utilized in watches during the period of approximately 1930.
The Junghans J69F features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2082 | Ordinary/None | Buy staff |
| 3169 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.25 x 0.090 x 240 x 7.5 mm | GR3095 | Manual | Buy mainspring |
| 1.25 x 0.085 x 240 x 7.0 mm | GR3089 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
