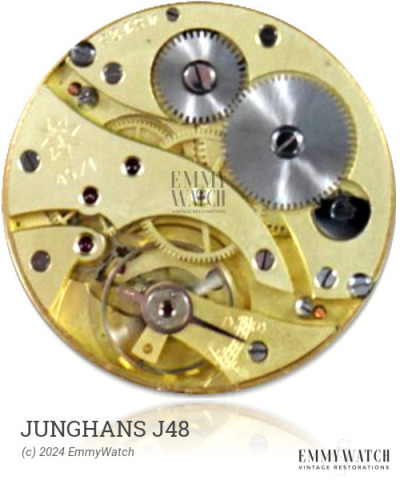

Junghans J48
Ligne: 11.5'''
Jewels: 17/21
Lift Angle: 52°
Power Reserve: 48 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1970-
Diameter: 26 mm
Height: 3.25 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: ETA 2600
The Junghans J48 is a mechanical watch movement that was used from 1970 onwards. It is a manual wind movement that features sweep seconds, a quickset date function, and a calendar with quickset.
The Junghans J48 features the following functions:
- Calendar with quickset
- Date with quickset
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.130 x 360 x 11.0 mm | GR2991 | Manual | Buy mainspring |
| 1.20 x 0.120 x 350 x 11.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BALANCE COMPLETE | 721/1846 | 721/ETA 2412 | Buy part |
| SET BRIDGE | 445/1199 | /ETA 2612 | Buy part |
| SET LEVER | 443/1375 | 443/1-ETA 2612 | Buy part |
| SET WHEEL | 450/1045 | Buy part | |
| STOP SECOND LEVER | A/7300 | 9433/ETA 2630 | Buy part |
