Junghans J38C/1
Ligne: 13'''
Jewels: 17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 29.4 mm
Height: 3.8 mm
Hands: 1.50 x 0.80 / 0.20 mm

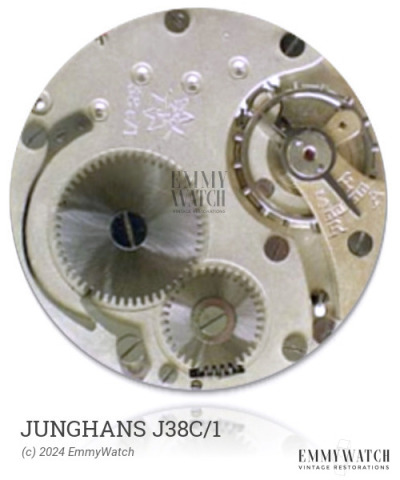

The Junghans J38C/1 watch movement, also known as the Wehrmachtswerk or Germany Military Movement, has similarities to the AS 1130 movement, but the specific differences are not known. It is part of a line of movements that includes the AS 1130, 1142, 1149, 1243, 1286, 1295, 1304, 1339, 1383, 1387, 1392, 1399, 1401, 1420, 1487, 1502, 1522, 1540, 1542, 1548, 1573, 1597, 1667, and 1685. Within this line, there are two calibres with a 13.5''' size, namely the 1337 and 1511, and two calibres with a 14''' size, the 1486 and 1543. Additionally, three calibres in this line have an indirect sweep second: 1155, 1164, and 1195. However, these models were produced for only a short time and were soon replaced by the AS 1188, which features a direct sweep second. The Junghans J38C/1 movement is a manual wind movement with a sub second function, and it was used during the approximate period of 1955.
The Junghans J38C/1 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
