Junghans 683.73
Ligne: 11.5'''
Jewels: 17/25
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1955-
Diameter: 26 mm
Height: 5.2 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: A. Schild 1580

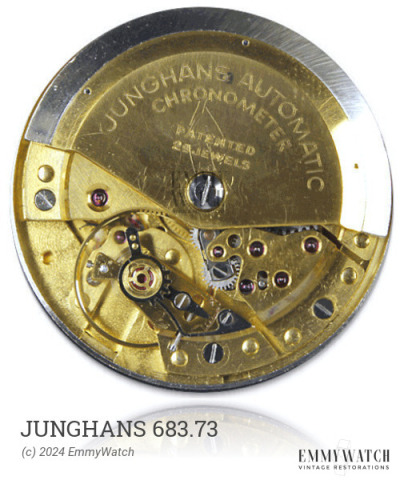

The Junghans 683.73 watch movement is a detached manual wind mechanism that features automatic and sweep second functions. This movement was introduced in 1955 and has been utilized since then.
The Junghans 683.73 features the following functions:
- Automatic Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.100 x 340 x 10.0 mm | GR2922X | Auto | Buy mainspring |
| 1.20 x 0.105 x 340 x 10.0 mm | GR2937X | Auto | Buy mainspring |
| 1.20 x 0.100 x 315 x 9.5 mm | Auto | Buy mainspring |
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| ARBOR,PALLET S/C PVT 40X135X11 | 72S/250P | 715/AS 1580 | Buy part |
| BALANCE COMPLETE | 721/741 | Buy part | |
| BARREL ARBOR, TIME KEY | 195/21 | Buy part | |
| MAINSPRING 1.20-.105-340 10 | MSS-WA32 | GR 2937-X | Buy part |
| ROLLER 180X75X36 | 82S/40R | 730/31 | Buy part |
| ROLLER, INCABLOC 180X75X36 | 82S/147R | 730/AS 1649 | Buy part |
| STAFF | 100/1615 | Buy part | |
| STEM | 200/275F | Buy part | |
| STEM, FEMALE | 360/256 (use 360/264) | 360/256 | Buy part |
