Junghans 628.70
Ligne: 11.5'''
Jewels: 17
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 26 mm
Hands: 1.30 x 0.70 / 0.22 mm

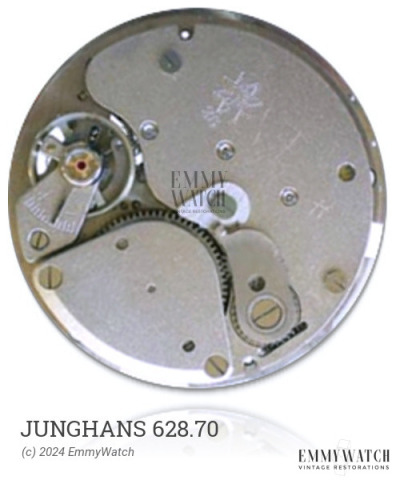

The Junghans 628.70 watch movement is a larger version of the 70-2N movement, featuring a pillar plate design. This manual wind movement includes functions such as a sub second hand, date indication set by changing the 20-24h mark, a calendar display, and was commonly used around the period of 1950.
The Junghans 628.70 features the following functions:
- Calendar
- Date: set by changing 20-24h
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 320 x 9.0 mm | GR4880 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
