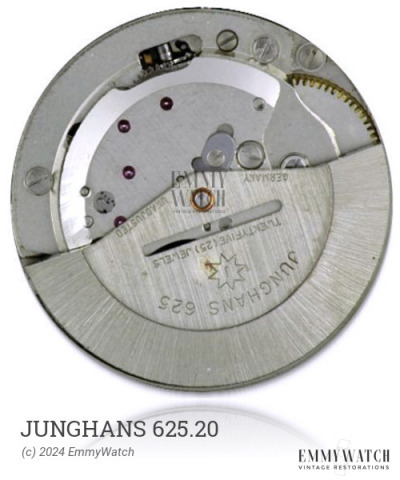

Junghans 625.20
Ligne: 7.75'''
Jewels: 21/25
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1960
Diameter: 17.5 mm
Height: 5.55 mm
Hands: 1.20 x 0.70 x 0.20 mm
The Junghans 625.20 watch movement features a balance and barrel sourced from MST. In 1964, there was a transition from a fixed to a mobile stud carrier. This movement offers automatic winding and a sweep seconds function. The date function can be set by adjusting the 21-24 hour range. These specifications are characteristic of the Junghans 625.20, which was commonly used in the time period of approximately 1960.
The Junghans 625.20 features the following functions:
- Automatic Winding
- Date: set by changing 21-24h
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.070 x 220 x 6.5 mm | GR3186X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
