Jaeger Lecoultre 800
(JLC, Lecoultre)
Ligne: 11.5'''
Jewels: 15
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 26 mm
Height: 4.0 mm
Hands: 1.30 x 0.60 / 0.21 mm

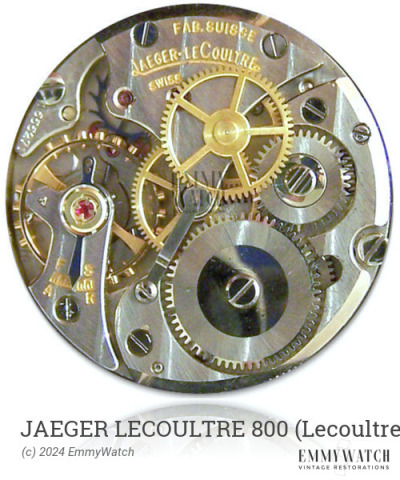

The Jaeger Lecoultre 800 watch movement, produced around 1945, features a manual wind mechanism and includes a sub second function. The specific differences among related movements such as 210 through 220, 222, 224, 226, and 227 are not known. Additionally, the movement showcases various bridge shapes.
The Jaeger Lecoultre 800 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.100 x 350 x 10.0 mm | Manual | Buy mainspring | |
| 1.80 x 0.100 x 320 x 9.0 mm | GR5254 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
