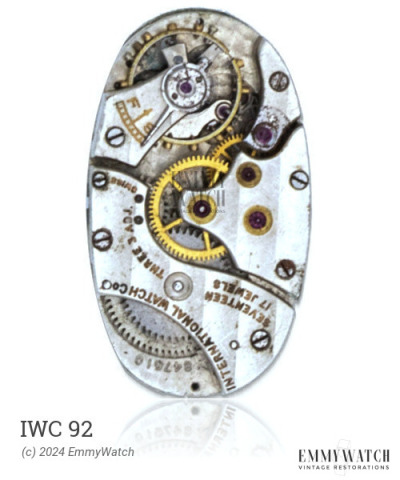

IWC 92
Ligne: 10.5'''
Jewels: 15/17
Lift Angle: 52°
Power Reserve: 54 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 23.4 mm
Hands: 1.40 x 0.80 x 0.20 mm
The IWC 92 watch movement, which was in use around 1945, is equipped with a shock device that functions only in the axial direction. The specific differences between the 540 and 565 movements are not presently known. This movement offers manual wind functionality and features a sweep second hand.
The IWC 92 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.100 x 350 x 10.0 mm | Manual | Buy mainspring | |
| 1.80 x 0.090 x 360 x 9.0 mm | GR5235 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
