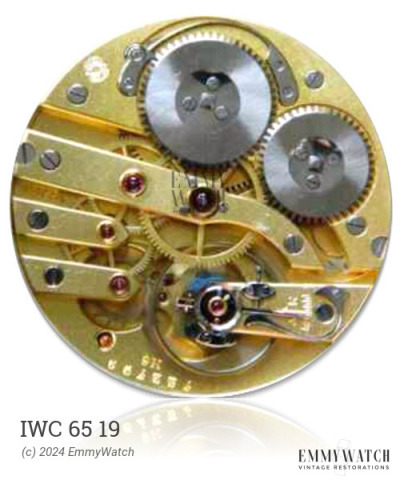

IWC 65 19
Ligne: 5.75 x 8.5'''
Jewels: 15/16
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Size: 12.8 x 19.6 mm
Height: 3.8 mm
Hands: 1.10 x 0.60 mm
The IWC 65 19 watch movement features a patented space-saving train design in two layers and offers an optional bimetallic screw balance. The differences between the 80, 86, 93, 113, 114, 116, 117, 128, 133, 134, 144, 146, 148, 153, 157, 167, and 177 models are not known. This movement is designed for manual winding and was commonly used around the period of 1930.
The IWC 65 19 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1007 | Ordinary/None | Buy staff |
| 1049 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.080 x 260 x 7.5 mm | GR3923 | Manual | Buy mainspring |
| 1.45 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
