Return To ShopWatch Database
Illinois 401
Ligne: 10.5'''
Jewels: 15/17
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Diameter: 23.3 mm
Hands: 1.40 x 0.80 mm
Base: Felsa 71

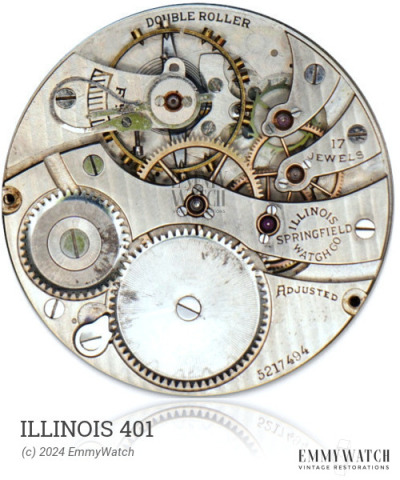

The Illinois 401 is a mechanical watch movement with a bimetallic screw balance. It belongs to a series of movements that include the 71, 73, 75-80, 144, 166, 167, 203, 205, 216, 219, 240, 244, 255, 268, 284, 286, 287, and 326, with differences not known. The Illinois 401 movement features manual winding, a sub second display, and a sweep seconds function. It was used during approximately 1935.
The Illinois 401 features the following functions:
- Manual Winding
- Sub Second
- Sweep Seconds
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 320 x 9.0 mm | GR4880 | Manual | Buy mainspring |
| 1.70 x 0.095 x 320 x 9.0 mm | GR4870 | Manual | Buy mainspring |
| 1.70 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
