Henzi Pfaff 425
Ligne: 11.5'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 25.6 mm
Height: 3.8 mm
Hands: 1.50 x 0.80 / 0.20 mm

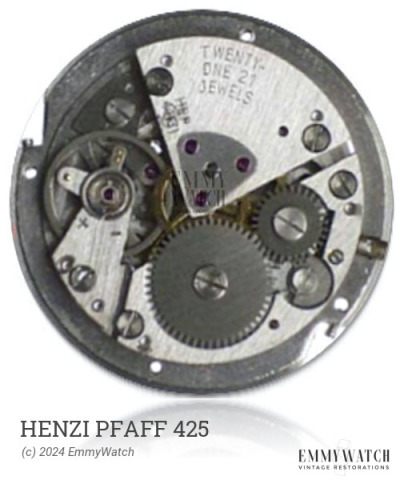

The Henzi Pfaff 425 watch movement is a manual wind movement with sub second function. It is similar to the A. Schild 1203 movement, but with a smaller base plate and barrel. The specific differences between the 1205, 1206, and 1272 models are not known. The Henzi Pfaff 425 movement was commonly used in watches produced in the 1950s.
The Henzi Pfaff 425 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring | |
| 1.70 x 0.115 x 300 x 9.5 mm | GR4915 | Manual | Buy mainspring |
| 1.70 x 0.110 x 260 x 8.0 mm | GR4904 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
