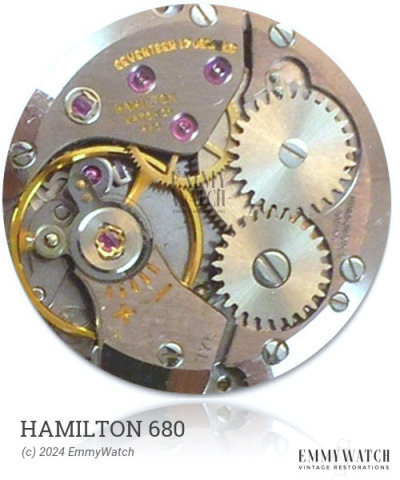

    Hamilton 680

    SHOCK ADJ STUD HOLDER *

    Ligne: 7.75'''

    Jewels: 17

    Power Reserve: 44 hrs

    Frequency: 21600 vph

    Type: Manual Wind

    Period used: ~1965

    Diameter: 17.5 mm

    Height: 2.85 mm

    Hands: 1.20 x 0.60 mm

    Base: Eta 2512

    Mainspring Listing

    DimensionsGR Reference #End Type
    1.20 x 0.085 x 230 x 7.5 mmManual

    Parts Listing

    Part DescriptionReference #AlternateDiscontinued
    BALANCE COMPLETE INCA721/1729721/1729Yes
    BALANCE COMPLETE W/SCREWS721/983721/ETA 2512
    BALANCE COMPLETE, W/ROUND STUD721/1972721/1972Yes
    BALANCE WHEEL111900/HAM
    BARREL & CAP182/724182/724Yes
    BARREL ARBOR195/856195/ETA 2512
    BRIDGE BARREL
    BRIDGE PALLET
    CANNON PINION, HT 1.35240/1314242/ETA 2510
    CANNON PINION, HT 1.60240/1689
    CANNON PINION, HT 1.85240/1419240/1419Yes
    CANNON PINION, HT 2.10240/1518242/1 ETA 2510
    CANNON PINION, HT 2.35240/1774
    CANNON PINION, HT 2.60240/1775
    CENTER PIPEM/654163/ETA 2510
    CLICK425/596425/ETA 2510
    CLICKSPRING430/690430/ETA 2510
    CLUTCH LEVER435/626/ETA 2510.
    CLUTCH WHEEL407/754407/ETA 2510
    CROWN WHEEL420/775420/ETA 2510
    CROWN WHEEL RING422/425
    ESCAPE WHEEL, C/S704/271
    ESCAPE WHEEL, S/S705/914
    FOURTH WHEEL, REGULAR220/516220/ETA 2512
    HOUR WHEEL, HT .60250/1096
    HOUR WHEEL, HT .85250/1459
    HOUR WHEEL, HT 1.00250/1166250/950.001
    HOUR WHEEL, HT 1.25250/1281
    HOUR WHEEL, HT 1.50250/1460
    HOUR WHEEL, HT 1.75250/1461
    INTERMEDIATE WHEEL203/44
    JEWEL, LOWER THIRD WHEEL CAPM/655M/655Yes
    JEWEL, LOWER THIRD WHEEL CAP330/88347/ETA 2510
    JEWEL, UPPER BALANCE CAP311/250
    JEWEL, UPPER THIRD CAP336/81337/ETA 2340
    MAINSPRING 1.20-.07-240 6,5MS-314EMS-314EYes
    MINUTE COCK462/126
    MINUTE WHEEL260/655260/ETA 2510
    PALLET ARBOR72S/315P714/ETA 2510
    PALLET FORK & ARBOR710/860710/860Yes
    PALLET S/C710/861710/861Yes
    RATCHET WHEEL415/787
    REGULATOR301/753
    REGULATOR W/O POINTER301/1259
    REGULATOR W/STUD HOLD (OLD) 2301/1101307/ETA 2510
    ROLLER82S/302R
    ROLLER, INCABLOC 155X70X3382S/159R
    SCREW, BALANCE BRIDGE5110/4905110/ETA 2510
    SCREW, CASE (LONG)5101/1845101/ETA 980.001
    SCREW, CASE (SHORT)5101/1855101/ETA 950.001
    SCREW, CASE,SPECIAL5102/33
    SCREW, CROWN WHEEL5420/4875420/ETA 2440
    SCREW, DIAL SIDE5750/765750/ETA 790
    SCREW, LOW 3RD WHEEL CAP JEWELM/6535335/ETA 2510
    SCREW, MIN COCK & ESC LOWER5330/23
    SCREW, MIN COCK & ESC UPPER5330/675163/ETA 2390-2
    SCREW, PALLET BRIDGE5125/230
    SCREW, RATCHET WHEEL5415/426
    SCREW, SET BRIDGE5445/389
    SCREW, SET LEVER5443/941
    SCREW, STUD5738/1965738/AS 1017
    SCREW, UPPER BALANCE CAP JEWEL5311/265
    SET BRIDGE445/836445/ETA 2510
    SET LEVER (W/SCREW)443/933443/1-ETA 2510
    SET SPRING440/687
    SET WHEEL450/670
    STAFF, COL .50100/1979
    STAFF, INCABLOC COL .50100/1973
    STAFF, SCREWLESS COL .50723/839
    STAFF, W/SCREW COL .50 3-ARM723/840
    STEM, FEMALE OA7.15 SH2.80360/322360/ETA 2510
    STEM, FEMALE OA9.33 SH5.02360/334360/ETA 2510
    STEM, MALE OA 6.20360/463360/ETA 2510
    STEM, TAP 10401/438401/ETA 2510
    STEM, TAP 10 12.50 O/A200/1482F401/ETA 2510
    THIRD WHEEL210/946210/946Yes
    WINDING PINION410/891410/ETA 2510
    WINDING WHEEL HUB219900/HAM
