Hamilton 15
Ligne: 13'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1963-
Diameter: 29.4 mm
Height: 4.5 mm
Hands: 1.50 x 0.90 x 0.21 mm

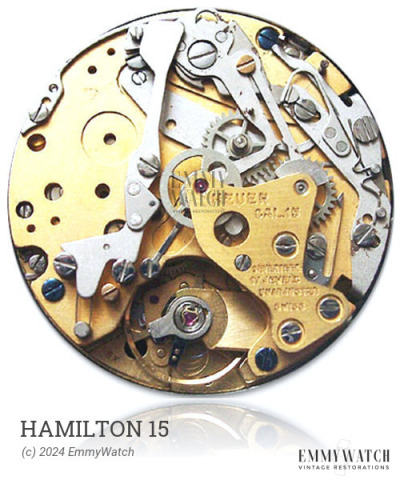

The Hamilton 15 is a mechanical watch movement with automatic winding and a sweep second function. It features a date function that can be set by changing the time between the 20:40-24h mark. The movement also includes an adjustable stud holder. The Hamilton 15 has been used since 1963.
The Hamilton 15 features the following functions:
- Adjustable Stud Holder
- Automatic Winding
- Date: set by changing 20:40-24h
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5275 | Ordinary/None | Buy staff |
| 5275 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.115 x 400 x 11.5 mm | GR2966X | Auto | Buy mainspring |
| 1.20 x 0.125 x 400 x 11.0 mm | GR2985X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
