Guba 69.1
(GBA)
Ligne: 13'''
Jewels: 17
Lift Angle: 49°
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 29.4 mm
Height: 5.3 mm
Hands: 1.50 x 0.90 mm
Base: Unitas 6300N

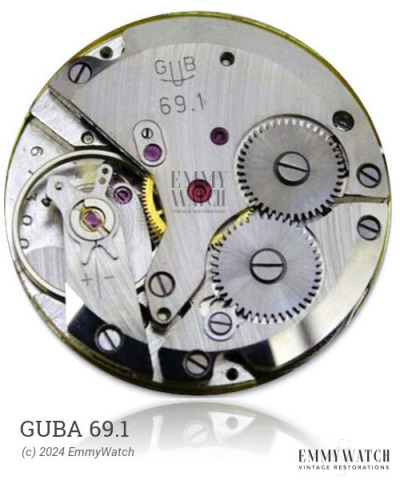

The Guba 69.1 is a watch movement known as Wehrmachtswerk, originally developed for the German military. It is based on the Unitas 6305 movement but features a modified balance and stem mechanism. This manual wind movement offers several functions, including sweep seconds, date, and calendar. The Guba 69.1 was primarily used around 1965.
The Guba 69.1 features the following functions:
- Calendar
- Date
- Manual Winding
- Sweep Seconds
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.150 x 340 x 12.5 mm | GR4254 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
