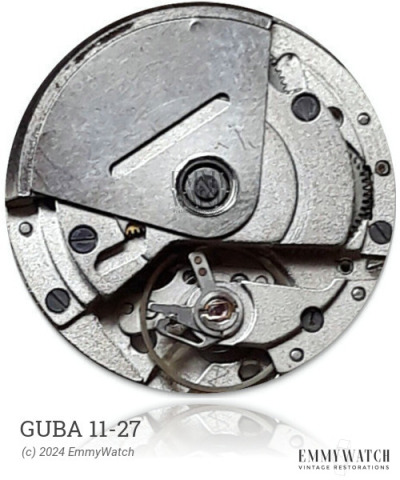

Guba 11-27
(GBA)
Ligne: 13'''
Jewels: 25
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1964-
Diameter: 29.4 mm
Height: 6.35 mm
Hands: 1.52 x 1.00 x 0.18 mm
The Guba 11-27 watch movement, used from 1964 onward, encompasses the 4101 through 4103 variations, although the specific differences among them are unknown. This automatic movement features a sweep second hand and includes functions such as day setting by changing between 22-0:45h, as well as date quickset achieved through repeated pulling of the crown.
The Guba 11-27 features the following functions:
- Automatic Winding
- Date: quickset by repeated pulling the crown
- Day: set by changing 22-0:45h
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CROWN WHEEL RING | 057-10 | 422/702 | Buy part |
