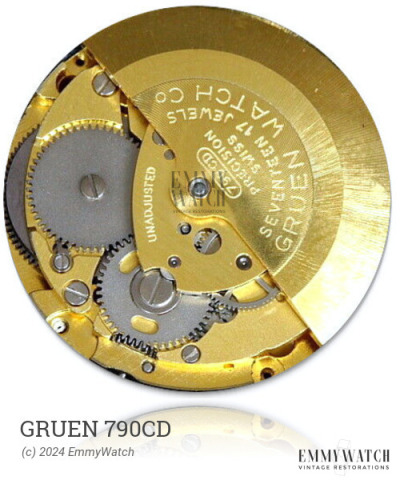

Gruen 790CD
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1965
Diameter: 26 mm
Height: 5.3 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Gruen 790CD is a mechanical watch movement that features an early fixed or later mobile stud carrier. It has various functions, including automatic winding and a sweep second hand. The movement also incorporates an offset center wheel. The Gruen 790CD was commonly used during the approximate period of 1965.
The Gruen 790CD features the following functions:
- Automatic Winding
- Offset Center Wheel
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4377 | Ordinary/None | Buy staff |
| 5136 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.105 x 360 x 10.5 mm | GR3271X | Auto | Buy mainspring |
| 1.30 x 0.105 x 300 x 9.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
