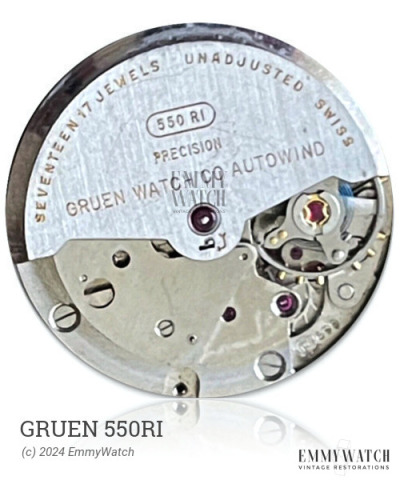

Gruen 550RI
Ligne: 7.75'''
Jewels: 21/23/25
Lift Angle: 51°
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1959-1967
Diameter: 17.5 mm
Height: 5.55 mm
Hands: 1.20 x 0.70 x 0.20 mm
The Gruen 550RI watch movement, used from 1959 to 1967, features a mobile stud carrier, allowing for a low profile design. Its indirectly driven minute system enables a large balance. The movement includes a sweep second function, offset center wheel, and an automatic mechanism. It also incorporates a calendar with the date set by changing the 21-24h timeframe.
The Gruen 550RI features the following functions:
- Automatic Winding
- Calendar
- Date: set by changing 21-24h
- Offset Center Wheel
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4400 | Ordinary/None | Buy staff |
| 5235 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 220 x 7.0 mm | GR3201X | Auto | Buy mainspring |
| 1.30 x 0.075 x 220 x 6.5 mm | GR3193X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
