Gruen 510
Ligne: 11.5'''
Jewels: 15
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 26 mm
Height: 4.0 mm
Hands: 1.30 x 0.60 / 0.21 mm

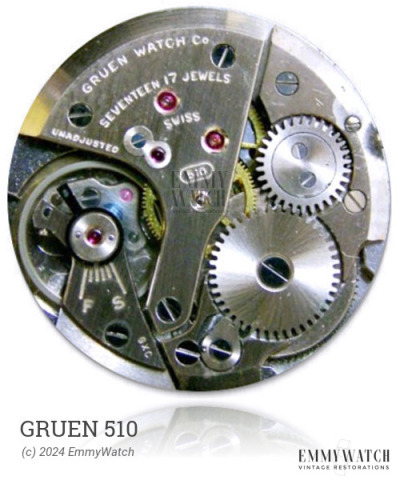

The Gruen 510 watch movement, produced around 1945, is a manual wind movement with a sub-second function. It is part of a series of movements numbered from 210 through 220, with models 222, 224, 226, and 227 included as well. The specific differences between these movements are not known. The Gruen 510 movement features various bridge shapes, exhibiting technical diversity within its design.
The Gruen 510 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.100 x 350 x 10.0 mm | Manual | Buy mainspring | |
| 1.80 x 0.100 x 320 x 9.0 mm | GR5254 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
