Gruen 421SS
Ligne: 18.5'''
Jewels: 15
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1920
Diameter: 41.65 mm
Height: 5.3 mm
Hands: 2.00 x 1.15 / 0.26 mm
Base: Unitas 31

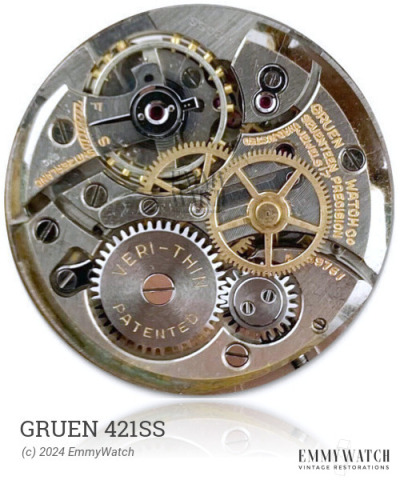

The Gruen 421SS is an open face calibre watch movement featuring a stem wind and set function. It is equipped with a sub second dial and is believed to incorporate a left-handed ratchet-wheel screw. The specific differences between the 273 and 6525 variations are not known. This movement was commonly used around the 1920s.
The Gruen 421SS features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.10 x 0.200 x 490 x 16.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
