Gruen 416
Ligne: 10.5'''
Jewels: 15
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.3 mm
Height: 4.0 mm
Hands: 1.22 x 0.80 / 0.18 mm

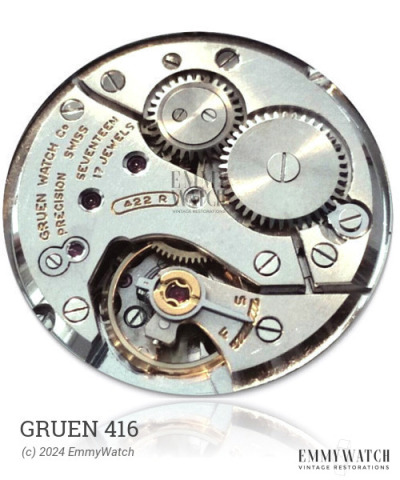

The Gruen 416 watch movement is a manual wind movement with sub-second function. It shares similarities with the Fleurier 70 through 85, 87 through 89, and 100 through 109 movements, although the exact differences between these models are unknown. The Gruen 416 is likely part of a catalog of movements with varying bridge and plate details.
The Gruen 416 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 300 x 9.0 mm | GR4486 | Manual | Buy mainspring |
| 1.60 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.40 x 0.110 x 260 x 8.0 mm | GR3696 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
