Girard Perregaux 504
Jewels: 17
Lift Angle: 53°
Frequency: 19800 vph
Type: Manual Wind
Period used: 1963-
Diameter: 12.4 mm
Height: 2.85 mm
Hands: 0.70 x 0.40 mm

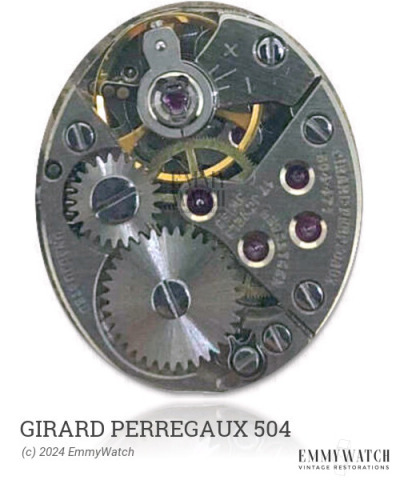

The Girard Perregaux 504 watch movement, introduced in 1963 and featuring a straight lever escapement, is a manual wind movement with Incabloc Shock Protection. Its functions include stem winding. This movement was used by Omega starting from 1963 and onwards.
The Girard Perregaux 504 features the following functions:
- Incabloc Shock Protection
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.060 x 180 x 5.5 mm | GR2840 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
