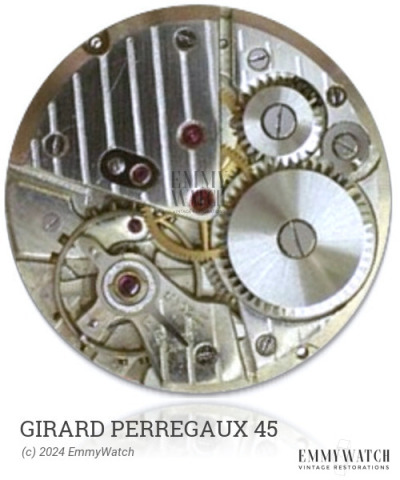

Girard Perregaux 45
Ligne: 10.5'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1934
Diameter: 23.3 mm
Height: 4.3 mm
Hands: 1.20 x 0.80 / 0.20 mm
The Girard Perregaux 45 is a mechanical watch movement with a manual winding system and sub-second function. It was commonly used around 1934. The specific differences between the Girard Perregaux 45, 297, 313, and 316 movements are not known.
The Girard Perregaux 45 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 985 | Ordinary/None | Buy staff |
| 999 | Incabloc | Buy staff |
| 3179 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.65 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.60 x 0.095 x 320 x 9.0 mm | GR4477 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
