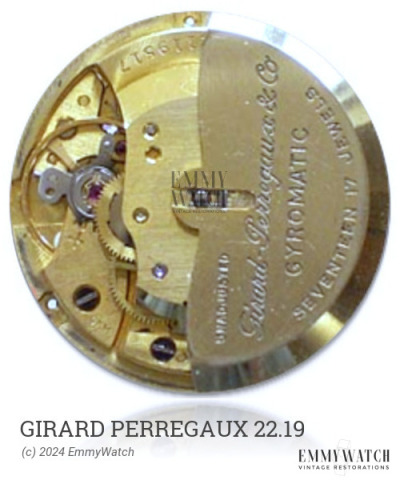

Girard Perregaux 22.19
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1965
Diameter: 26 mm
Height: 5.3 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Girard Perregaux 22.19 is a mechanical watch movement that features an early fixed or later mobile stud carrier. It has various functions, including automatic winding and a sweep second hand. The movement also incorporates an offset center wheel. The Girard Perregaux 22.19 was commonly used during the approximate period of 1965.
The Girard Perregaux 22.19 features the following functions:
- Automatic Winding
- Offset Center Wheel
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4377 | Ordinary/None | Buy staff |
| 5136 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.105 x 360 x 10.5 mm | GR3271X | Auto | Buy mainspring |
| 1.30 x 0.105 x 300 x 9.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
