Geneva Sport Watch 171
Ligne: 13.5'''
Jewels: 1/17
Lift Angle: 46°
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 30.46 mm
Height: 3.9 mm
Hands: 1.80 x 1.30 x 0.20 mm

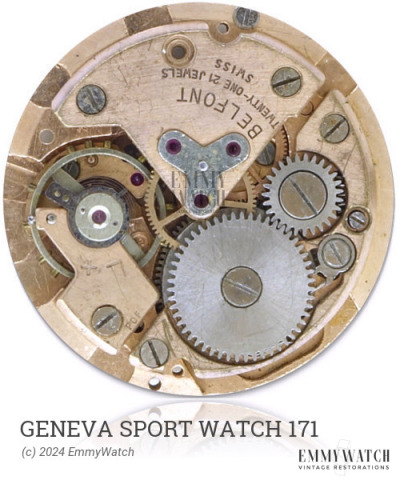

The Geneva Sport Watch 171 watch movement, which was in use around 1970, exhibits a pin-lever escapement and a stem mechanism without a setting-lever spring. Notably, the train and hand gears of the movement are driven separately by the barrel. In terms of functions, the Geneva Sport Watch 171 movement features manual winding and a sweep seconds hand.
The Geneva Sport Watch 171 features the following functions:
- Manual Winding
- Pin lever
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5200 | Ordinary/None | Buy staff |
| 5199 | Incabloc | Buy staff |
| 5199 | Kif | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 340 x 10.0 mm | GR3700 | Manual | Buy mainspring |
| 1.40 x 0.105 x 320 x 9.5 mm | GR3681 | Manual | Buy mainspring |
| 1.40 x 0.105 x 300 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
