General 861
(Helvetia)
Ligne: 11.5'''
Jewels: 24
Power Reserve: 41 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1961-
Diameter: 26 mm
Height: 5.1 mm
Hands: 1.50 x 0.90 x 0.21 mm

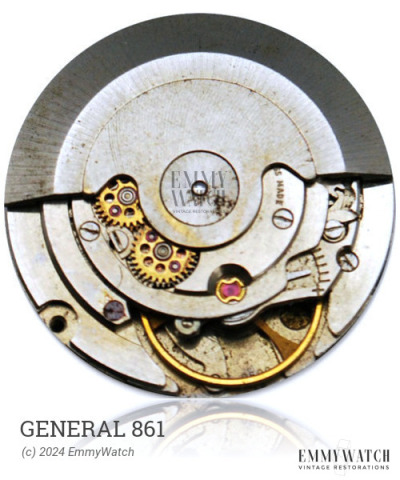

The General 861 watch movement is an automatic mechanism that incorporates a regulation gear. It is part of a family of movements based on the manual wind calibre AS 1687/1688. Developed in collaboration with Doxa, Eberhard, Favre-Leuba, Girard-Perregaux, and Zodiac, the extent of Ebel's involvement in this group remains unknown. The movement features automatic winding, sweep seconds, and a date function that is set by changing the 21-24 hour marker. The General 861 movement was used during the period from 1961 onwards.
The General 861 features the following functions:
- Automatic Winding
- Date: set by changing 21-24h
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.110 x 320 x 10.0 mm | GR3699X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
