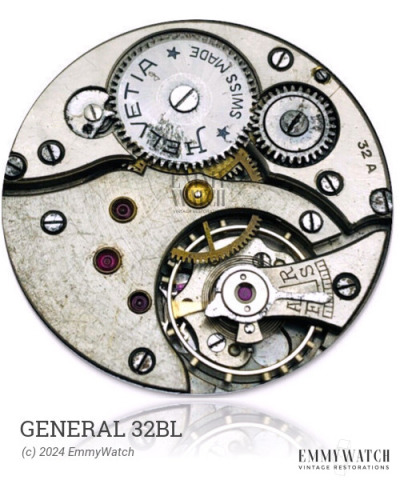

General 32BL
(Helvetia)
Ligne: 12'''
Jewels: 15/17
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 27 mm
Height: 3.5 mm
Hands: 1.50 x 0.80 / 0.21 mm
The General 32BL watch movement is often or always identified by the signature on the dial side as 1120. However, the differences between the 1120, 1122, 1124, 1126, 1128, 1130, 1132, 1138, and 1288 are not known. This movement features manual wind functionality, a sub second display, and is equipped with Incaflex Shock Protection. It was predominantly used around the 1960s.
The General 32BL features the following functions:
- Incaflex Shock Protection
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.130 x 320 x 10.5 mm | GR4196 | Manual | Buy mainspring |
| 1.50 x 0.130 x 300 x 10.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.120 x 320 x 9.5 mm | GR41761 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
