General 32
(Helvetia)
Ligne: 16'''
Jewels: 15
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 36.1 mm
Height: 4.15 mm
Hands: 1.80 x 1.00 / 0.28 mm

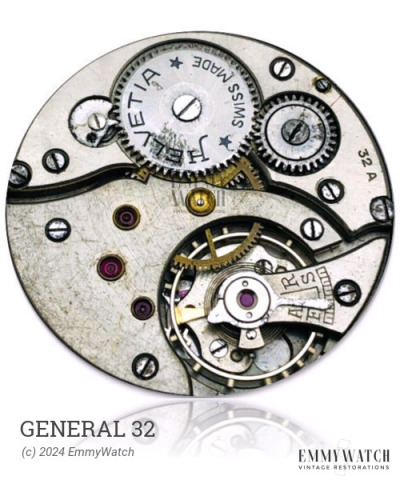

The General 32 is a mechanical watch movement with an open face calibre design. It shares similarities with other movements such as the 1052, 1054, 1067, 1068, 1087, 1148, 1369. Aside from varying bridge layouts, crown-wheel bearings, and clicks, no significant differences are known among these movements. The General 32 features stem wind and set functions, a sub second display, and was commonly used around 1945.
The General 32 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.160 x 430 x 14.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|

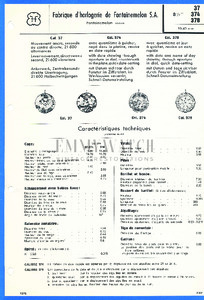

Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
