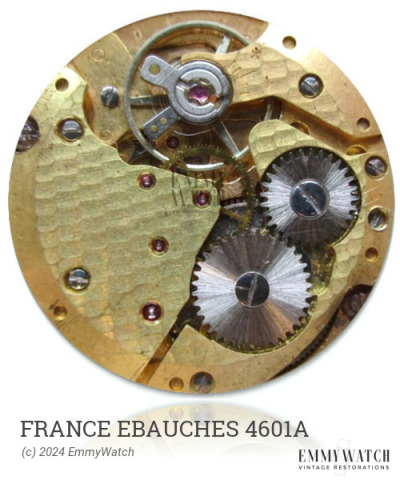

France Ebauches 4601A
Ligne: 18'''
Jewels: 7
Power Reserve: 22 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Diameter: 40.6 mm
Height: 7.4 mm
Hands: 1.30 / 1.30 mm
The France Ebauches 4601A is an open face calibre with a stop function controlled by a pillar wheel. It features a barrel from Leonidas and is likely manufactured by AS. It is also listed as Heuer 943, Heuer 960-987, and France Ebauches 4601A, with slight variations in some instances. The movement has a diameter of 19''' and offers various functions such as a timer with options for 60s (0.2s) and 30min, as well as an option for 30s (0.1s) and 15min. It is a stem-winding movement with a sweep second hand and was commonly used around 1925.
The France Ebauches 4601A features the following functions:
- Option: 30s (0.1s), 15min
- Stem wind
- Sweep second
- Timer, 60s (0.2s), 30min, pillar wheel
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.155 x 540 x 14.5 mm | GR5027 | Manual | Buy mainspring |
| 1.70 x 0.160 x 430 x 14.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
